Model - F

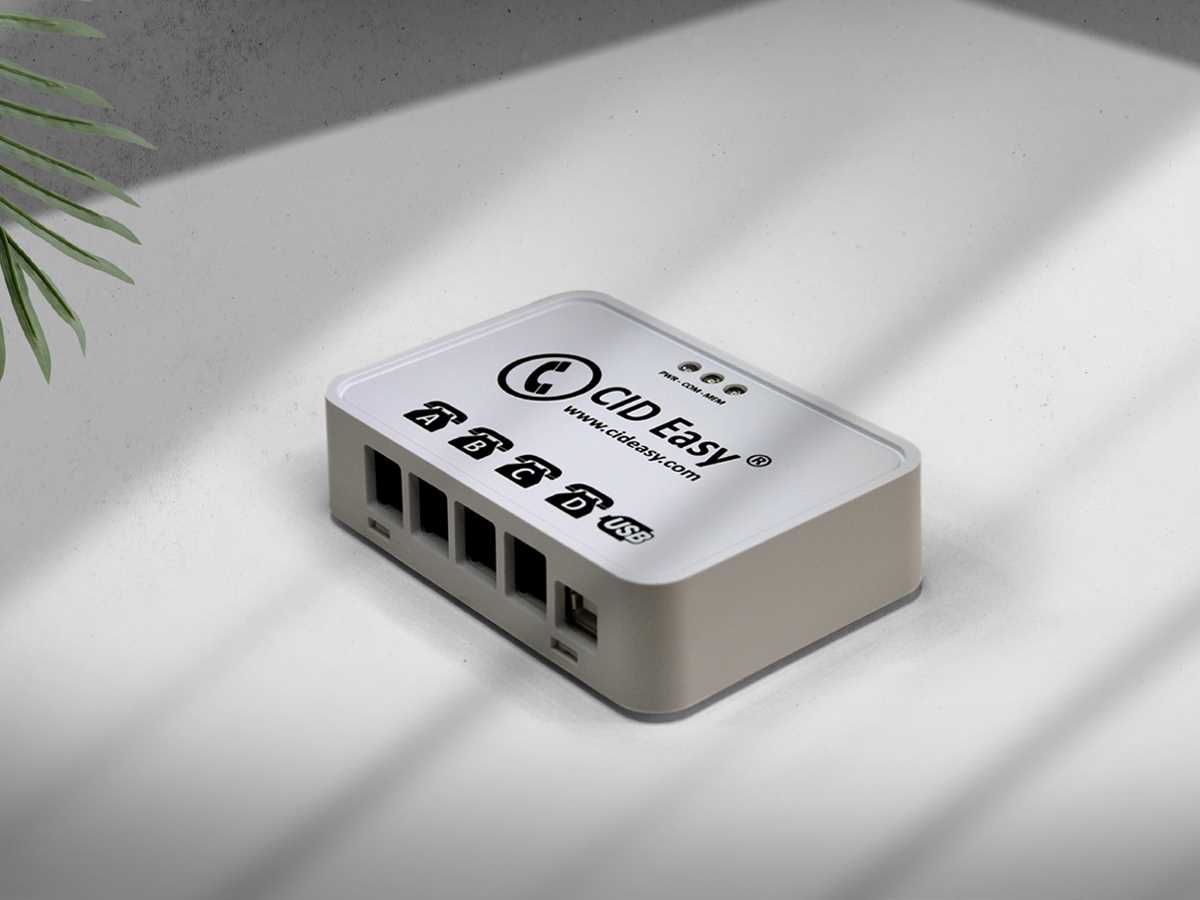

PSTN (Landline) Caller-id Device

USB/HID interfaced PSTN (Landline) Caller Id device for EPOS Systems.

Suitable for most used PSTN Caller-id standards.

No driver required for instatllation.

Supports most used OSs.

4 PSTN lines input.

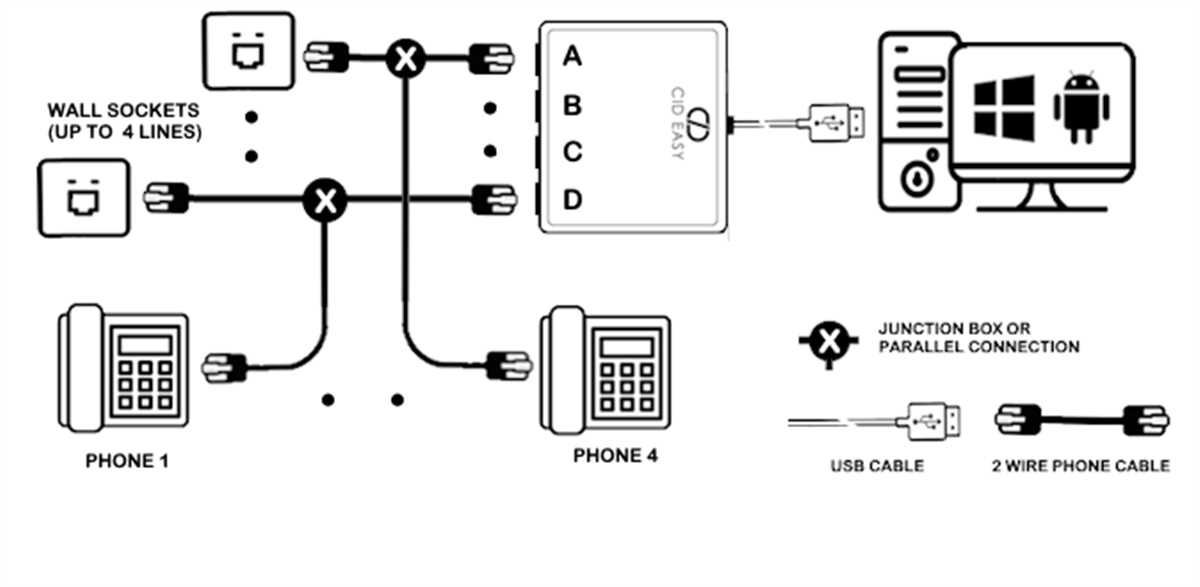

Connection Diagram

All of 4 input ports (RJ11) on device are input. For this reason, the parallel connection to the telephone lines must be made with a junction box or parallel telephone connection outside of the device.

The line coming from the wall socket should be divided into two with a parallel connection and one end should be connected to the device and the other end to the telephone.

The device designed for 6p2c connection (RJ11 pins 3 and 4)

PC Interfacing

Both the SIP and PSTN devices has Usb/HID 2.0 intarfeces to connect to PC. HID device type not needed driver software or extra setup for installation. Simply plugging in the USB plug of the device is enough for the device to be recognized by the computer. The recognition process for the first connection may take several seconds.

In Windows operating system, up to 4 devices can be connected to a computer at the same time if the application software that will use the device uses the device's native DLL library. In this case, up to 16 telephone lines can be monitored via a computer. For multiple device connections, USB ports on the computer or good quality external USB HUB devices can be used.

Technical Parameters

Call Memory Capacity : 8-16 calls

(Internal RAM buffer saves received calls before sending to application program on offline running conditions.)

Call Memory type : RAM / Stack (FIFO)

Supported CID Standards : Bellcore FSK - ETSI FSK, SIP 2.0

Line Detection : HOOK (On/Off) and RING DETECT (Only for Model-G)

Surge Portection : 5000 V (4)

Input Impedance : > 1M (DC)

Input Socket Type : 4xRJ11 (6p2c) 1xUSB/B

Sizes: 11 x 7.5 x 3 (cm)
